Buttweld Fittings

Buttweld fittings are critical components used in piping systems to change direction, branch off, or connect equipment. These fittings are welded directly to the pipe, creating a strong, leak-proof joint that can withstand high pressure and temperature conditions. Common types include elbows, tees, reducers, and caps. They are widely used in industries such as oil & gas, petrochemical, power generation, and water treatment. Buttweld fittings offer a smooth inner surface, reducing pressure drops and turbulence, while also ensuring long-term reliability and corrosion resistance.

Specifictaion

Specification Details
Standard ASME B16.9 / ASME B16.28
Size Range ½” to 72” (Seamless up to 24”)
Wall Thickness Sch 10 to Sch 160 / XXS
Type Elbow, Tee, Reducer, Cap, Cross
Connection Buttweld (BW)

Grades

Material Grade Application
Carbon Steel ASTM A234 WPB General industrial use, pipelines
Stainless Steel ASTM A403 WP304 / WP316 Chemical processing, food industry
Alloy Steel ASTM A234 WP5 / WP11 / WP22 High-temperature services
Duplex Steel UNS S31803 / S32205 Corrosive environments
Nickel Alloys Inconel 600 / 625, Hastelloy C276 Highly corrosive and high-temp systems

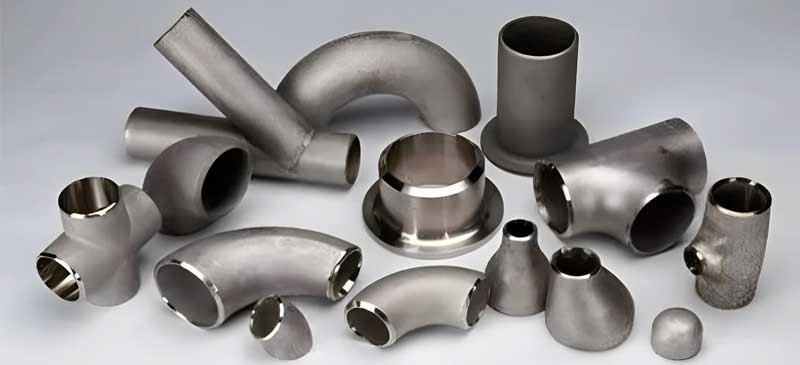

Types of Buttweld Fittings

Buttweld fittings include elbows, tees, reducers, caps, and crosses, used to change direction, branch, reduce pipe size, or close pipe ends. Common types are 45°, 90°, and 180° elbows, equal/reducing tees, concentric/eccentric reducers, and end caps. They are available in various materials and conform to ASME/ANSI standards.

Elbow

We are a high-quality manufacturer and supplier of long radius elbows, short radius elbows, stainless steel elbows, duplex elbows, and carbon steel elbows, including fabricated stainless steel elbows. Our products serve a wide range of industries such as pharmaceutical, chemical, power, petrochemical, engineering, and more.


We manufacture and supply elbows in various materials including Carbon Steel (A234 WPB, A420 WPL6, A234 WP11, A234 WP5), Stainless Steel (A403 WP304, A403 WP304L, A403 WP316, A403 WP316L), and Duplex Steel (2205). We offer seamless elbows, large diameter fabricated elbows, and elbows up to 36″ NB.

  • High strength

  • Corrosion resistance

  • Smooth flow transition

  • Leak-proof connection

  • Available in various angles & radii

Our elbows are available in long radius and short radius designs. Long radius elbows have a center-to-end distance of 1.5 times the nominal pipe size (R=1.5D), ideal for applications requiring smooth flow. Short radius elbows, with a radius equal to the NPS (R=1.0D), are suitable for tight spaces.


We manufacture elbows in standard angles such as 45°, 90°, and 180°, and can also produce custom angle elbows such as 60°, 100°, 120°, or 150°. Custom radius elbows are available in 1D, 2D, 3D, 4D, 5D, 10D, and other configurations as required.


Our fittings are available with different end types – machined for butt welding, threaded (usually female), or socketed. For connections where the two ends differ in size, we offer reducing or reducer elbows.


All elbows are manufactured in accordance with international standards including ASME/ANSI B16.9, ANSI B16.28, and MSS-SP-43. We also offer 100% X-Ray Welded Elbows to ensure high-quality weld integrity.


Buttwelded Pipe Elbow Specification


Outside Diameter: Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)
Wall Thickness: 3mm – 40mm / SCH3, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Bending Radius: R=1D – 10D, 15D, 20D
Product’s Angle: 5° – 180° Elbows, 90° and 45° Long Radius Elbows, Long Radius Returns, Short Radius Elbows and Returns
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Pipe Elbow Material Grades


Stainless Steel Elbow ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Elbow ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Elbow ASTM A420 WPL3, A420 WPL6
Alloy Steel Elbow ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Elbow ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Elbow ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Tee

We are a leading manufacturer and exporter of Pipe Tees in India, offering both Equal Tees and Reducing Tees in compliance with ASME/ANSI B16.9, ANSI B16.28, and MSS-SP-43 standards. Our range includes Carbon Steel, Alloy Steel, and Stainless Steel tees, catering to various industrial applications.


Our stainless steel tees, carbon steel tees, and special-grade tees are widely supplied to industries such as power generation, petrochemical, shipbuilding, paper manufacturing, chemical processing, pharmaceuticals, and fabrication.

  • Flow Control

  • Material Variety

  • Durability

  • Standard & Custom Sizes

  • Design Flexibility

Equal tees are used when the branch size is the same as the header pipe size, while reducing tees are used when the branch is smaller than the header. The three dimensions of a tee are End x End x Center. For example, a tee that is 1” on both ends and 3/4” in the center would be specified as 1” x 1” x 3/4”.


Depending on customer requirements, we manufacture and supply both straight tees and reducing tees in various grades including SS 202, SS 304/304L, SS 316/316L, SS 904L, Duplex 2205, Alloy 20, Cupro Nickel, Monel Alloy 400, Inconel Alloy 600/625, Hastelloy C276, and other aluminum grades.


Our tees can be provided with ends prepared for butt welding, threading (usually female), or socket welding. When the ends differ in size, the fitting is called a reducing tee.


Buttwelded Pipe Tee Specification


Outside Diameter: Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″)
Types: Equal Tees, Reducing Tees
Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Pipe Tee Material Grades


Stainless Steel Tee ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Tee ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Tee ASTM A420 WPL3, A420 WPL6
Alloy Steel Tee ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Tee ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Tee ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Cross

We are a prominent manufacturer and exporter of Pipe Crosses in India, offering both Straight Cross and Reducing Cross in a wide range of shapes and sizes. Our Pipe Crosses comply with ASME/ANSI B16.9, ANSI B16.28, and MSS-SP-43 standards and are available in materials such as carbon steel, alloy steel, and stainless steel.

  • High Pressure & Temperature Resistanc

  • Flow Junction

  • Industry Applications

  • Custom Sizes

  • Material Variety

We supply Pipe Crosses to various industries, including oil and gas, petrochemical, power generation, pharmaceuticals, paper manufacturing, natural gas, and chemical plants. The Pipe Cross is used as a junction where multiple pipes intersect, providing a strong and reliable connection.


The Pipe Cross is available in two types: Straight Cross, where all branches are of the same size, and Reducing Cross, where the branch size is smaller than the header size. The three dimensions of a cross are End x End x Center, similar to tees. For example, a cross that is 1" on both ends and 3/4" in the center would be specified as 1" x 1" x 3/4".


Buttwelded Pipe Cross Specification


Outside Diameter: Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″)
Types: Seamless, Welded, Equal Cross, Reducing Cross
Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Pipe Cross Material Grades


Stainless Steel Pipe Cross ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Pipe Cross ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Pipe Cross ASTM A420 WPL3, A420 WPL6
Alloy Steel Pipe Cross ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Pipe Cross ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Pipe Cross ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

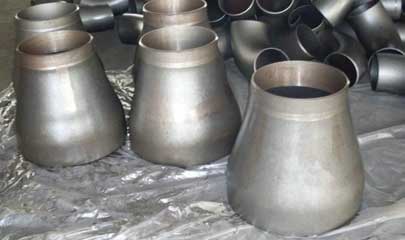

Reducer

We are a trusted manufacturer and exporter of Pipe Reducers in India, offering both Concentric Reducers and Eccentric Reducers in accordance with ASME/ANSI B16.9, ANSI B16.28, and MSS-SP-43 standards. Our reducers are available in carbon steel, stainless steel, alloy steel, copper, and duplex materials.


We regularly produce and stock a wide range of reducers, including stainless steel reducers, carbon steel reducers, alloy steel reducers, and duplex steel reducers. A pipe reducer is an essential fitting used to connect two pipes of different diameters in a pipeline, helping ensure smooth flow and system efficiency.

  • Connects different pipe sizes

  • Available as concentric & eccentric

  • High pressure & temperature resistance

  • ASME/ANSI/MSS compliant

  • Smooth flow transition

Pipe reducers are classified into two main types: Concentric Reducers, which maintain a symmetrical flow path, and Eccentric Reducers, which are used when maintaining the same top or bottom level of the pipe is necessary—typically in horizontal pipelines.


Our products are widely approved and used by major end-users in India and globally across industries such as oil & gas, power generation, petrochemicals, and shipbuilding.


Buttwelded Pipe Reducer Specification


Outside Diameter: Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″)
Types: Concentric Reducers, Eccentric Reducers
Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Pipe Reducer Material Grades


Stainless Steel Reducer ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Reducer ASTM A420 WPL3, A420 WPL6
Alloy Steel Reducer ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Reducer ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Reducer ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

End Cap

We are a leading manufacturer and exporter of Pipe End Caps in India, offering a variety of options including **Round** and **Oval** caps, as well as custom shapes such as **square** and **rectangular**. Our pipe caps are produced in accordance with ASME/ANSI B16.9, ANSI B16.28, and MSS-SP-43 standards, and are available in materials such as carbon steel, alloy steel, and stainless steel.

  • Available in round, oval, square, rectangular shapes

  • Carbon steel, stainless steel, alloy steel, special alloys

  • High pressure & temperature resistance

  • ASME/ANSI B16.9, B16.28, MSS-SP-43

  • Used in oil & gas, petrochemical, power, and chemical industries

Pipe end caps are commonly used as plugs to cover the ends of pipes. We offer both standard-sized caps and custom-made options to meet specific customer requirements. Our manufacturing range includes various grades such as SS 304/304L, SS 316/316L, SS 321, SS 347, Duplex, Alloy 201, Alloy 800H, Alloy C276, Cupro Nickel, Alloy 400, Alloy 625, and Alloy 600.


Our stocking program includes stainless steel pipe caps and carbon steel pipe caps in a variety of standard sizes and grades, ensuring that we can cater to diverse needs across various industries.


Buttwelded Pipe End Cap Specification


Outside Diameter: 1/2″ – 48″
Wall Thickness: 2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Pipe End Cap Material Grades


Stainless Steel Pipe Cap ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Pipe Cap ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Pipe Cap ASTM A420 WPL3, A420 WPL6
Alloy Steel Pipe Cap ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Pipe Cap ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Pipe Cap ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Pipe Bend

Guardian Steel Industry is a leading manufacturer, exporter, and supplier of a wide range of **pipe bends** in India. We offer stainless steel bends, carbon steel bends, and alloy steel bends in various radii and diameters, including **3D, 4D, 5D, 6D, 8D, and 10D**. Our products comply with international standards like **ASME/ANSI B16.9**, **ANSI B16.28**, and **MSS-SP-43**.


We manufacture pipe bends from a variety of materials such as **low and high yield carbon steels, alloy steels, stainless steels, Cr-Ni alloys**, and **titanium**. Our specialty includes large and small-sized stainless steel bends and piggable bends made from high-grade materials like **Duplex**, **310S**, **304L**, **316L**, **317L**, **347**, **321**, and **904L**.

  • Radius Options: 3D, 5D, Custom Sizes

  • Types: Piggable Bends, Miter Bends

  • Global Supply

  • Materials: Stainless Steel, Carbon Steel, Alloy Steel

  • EN 10204 3.1 Test Certificates

Our stainless steel and carbon steel bends can be produced from both **seamless** or **welded pipes**, with the choice depending on the technical requirements of the application.


Buttwelded Pipe Bend Specification


Outside Diameter: Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Wall Thickness: 3mm-40mm / SCH55, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Product Angle: 0° – 180°
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Pipe Bend Material Grades


Stainless Steel Bends ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Bends ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Bends ASTM A420 WPL3, A420 WPL6
Alloy Steel Bends ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Bends ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Bends ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

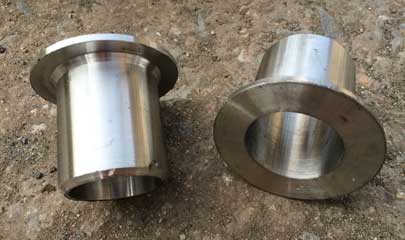

Stub End Lap Joint

Guardian Steel Industry is a leading manufacturer, exporter, and supplier of Long and Short Pattern Stub Ends / Lap Joints in India. Our products comply with ASME/ANSI B16.9, ANSI B16.28, and MSS-SP-43 standards and are available in carbon steel, stainless steel, and alloy steel.

  • Long & Short Pattern Stub Ends

  • For use with Lap Joint Flanges

  • 304/304L, 316/316L, Duplex, 904L, etc.

  • ASME B16.9, B16.28, MSS-SP-43

  • Oil & Gas, Power, Pharma, Chemical

Stub ends are fittings used in place of welded flanges, especially where rotating backup flanges are required. These are ideal for applications requiring frequent dismantling or alignment adjustments in piping systems.


We manufacture and supply stub ends in various grades including 304/304L, 304H, 316/316L, 321, 347, 317L, 310S, 904L, Duplex Steel, and Alloy 20. Our stub ends are used across a wide range of industries such as power generation, oil & gas, petrochemical, chemical, fabrication, wastewater treatment, and pharmaceuticals.


Stub End Lap Joint Specification


Outside Diameter: 1/2″ – 24″
Type: Long/Short Stub Ends
Wall Thickness: 2mm – 100 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Stub End Lap Joint Material Grades


Stainless Steel Stub End ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Stub End ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Stub End ASTM A420 WPL3, A420 WPL6
Alloy Steel Stub End ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Stub End ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Stub End ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

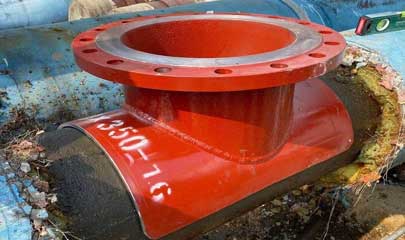

Split Tee

Guardian Steel Industry is a trusted manufacturer, exporter, and supplier of high-quality Split Tees made from carbon steel, alloy steel, and other specialized materials. Our products conform to international standards including ASME B16.25, ANSI B19.28, and MSS-SP-43.


Split Tees are specially designed fittings used primarily in hot tapping and line stopping operations. They are used to create a branch connection on a pipeline without interrupting the flow, making them ideal for live pipeline systems.

  • Long & Short Pattern Stub Ends

  • For use with Lap Joint Flanges

  • 304/304L, 316/316L, Duplex, 904L, etc.

  • ASME B16.9, B16.28, MSS-SP-43

  • Oil & Gas, Power, Pharma, Chemical

We manufacture Split Tees in a wide range of sizes and materials, including low and high yield carbon steels, alloy steels, stainless steels, Cr-Ni alloys, and titanium. Our capabilities include both standard and custom-built solutions to suit client specifications.


Our specialty also includes stainless steel bends and piggable bends in grades such as Duplex, 310S, 304L, 316L, 317L, 347, 321, and 904L.


Split Tee Specification


Standard – ANSI/ASME : ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: 2mm – 100 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXSEN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Size: 2″~36″ 15-1200
Pressure: 150#~2500#
Wall Thickness: Sch 10- Sch160
Material: Stainless Steel, Carbon Steel, Alloy Steel
Form: Split Tees

Split Tee Material Grades


Stainless Steel Split Tee : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Split Tee : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel Split Tee : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Duplex Steel Split Tee : ASTM A815, ASME SA815 UNS No S31803, S32205
Super Duplex Split Tee : ASTM A815, ASME SA815 UNS No S32750, S32950
Nickel Alloy Split Tee: ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 90/10 & Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. Low Temperature Carbon Steel Split Tee : ASTM A420 WPL3, A420 WPL6
